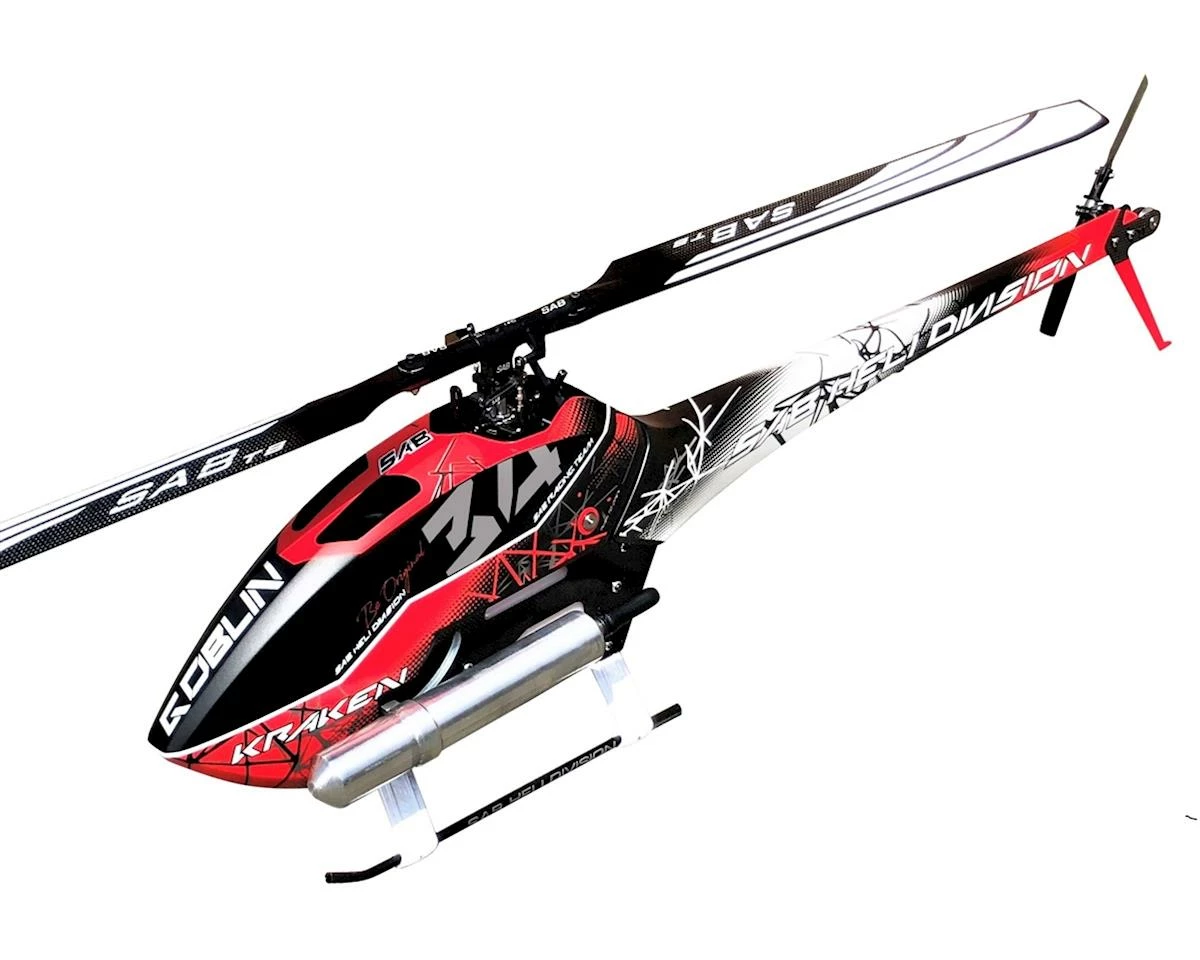

SAB Goblin 580 Kraken Nitro Helicopter Kit w/Main & Tail Blades

This is the SAB Goblin 580 Kraken Flybarless Nitro Helicopter Kit is the third helicopter design featuring the latest “separated transmission style” that originally debuted on the Kraken 700 helicopter. Incredible bold styling, and legendary flight characteristics are packed into a smaller design – the Kraken 580!

Features at a Glance:

• Accepts 550-600mm Main Blades
• Accepts 95-105mm Tail Blades
• Utilizes Mini Cyclic Servos standard; full size servos possible with optional mounts
• Utilizes Standard size Tail Servo
• Wide variety of motor gearing with common available pulleys

Optional Full Size Servo Mounts:
One of each is required to convert the Kraken 580 nitro to accept full size standard cyclic servos.

• H1207 (Rear) – Click Me
• H1217 (Front) – Click Me

Specifications:
Main rotor diameter:  1270mm (w/Included 570mm Main Blades)
Main blade length: 550 to 600mm
Tail rotor diameter: 260 mm  (w/Included 95mm Tail Blades)
Weight including electronics: 1760g (excluding batteries & electronics)

Includes:

• 23T motor pulley (other pulley sizes available)
• 570mm main blades
• 95mm tail blades

Needed To Complete:

• (1) 2.4GHz Transmitter & Receiver (6-channel or more, helicopter system)
• (1) .50-.60 Size Nitro Motor
• (1) Exhaust Pipe
• (3) Mini Cyclic servos
• (1) Mini throttle servo
• (1) Standard Tail rotor servo
• (1) 3-Axis Flybarless System
• Pitch gauge
• Nitro equipment: Fuel, starter, misc. accessories
• Various tools, lubes & greases for setup and assembly

This product was added to our catalog on September 17, 2020
