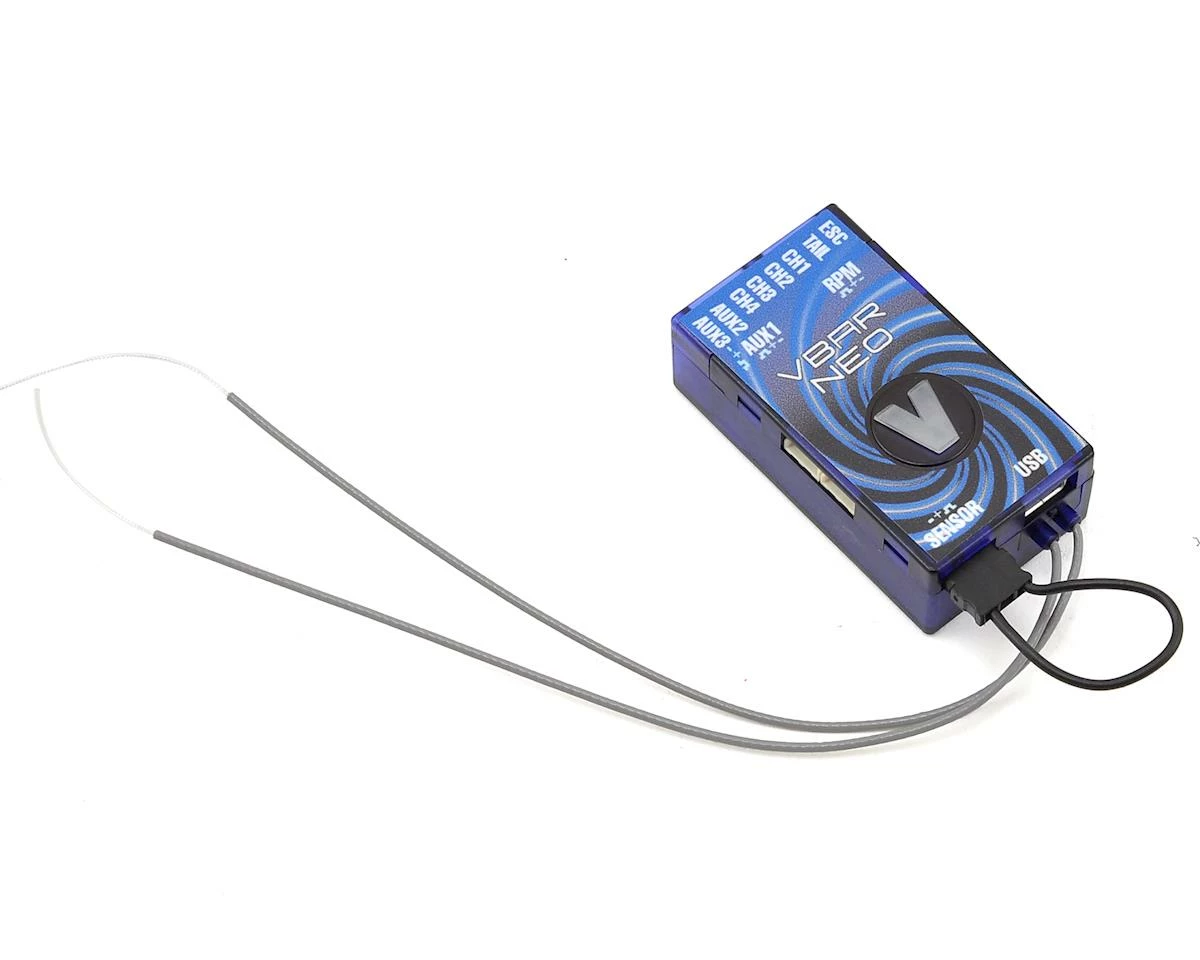

Mikado VBar Neo VBasic Receiver

The Mikado VBar NEO VBasic Receiver (VBasic) is a unique receiver for VBar Control, challenging the status quo in regard to availability of features, and being future-proof with active development in software, available with downloaded updates from Mikado.

In Depth Features:

• Easy setup via VBar Control Setup Wizard and clearly structured menus in VBar Control
• Using Presets and the Setup Wizard allow users to prep for use quickly;for almost any application. R/C cars, boats, planes, jets, & receivers for multi-rotors, & helicopters when using alternate gyros
• Competition-ready since it does not use gyros
• 5 analog control functions and programmable switching functions
• 9 physical outputs (servo connectors)
• 3 parameter banks (flight modes/conditions)
• 6 mixers with 5 inputs, differential mix, servo-throw adjustment, servo-travel limit
• Expo, trims and multi-rate per parameter bank and control input
• Throttle channel with idle trim (via rotary knob) and throttle idle for each parameter bank
• Innovative, self-learning trim concept without help of gyros (trim while you control the model), optional trim by means of rotary knobs, EDS dial on VBar Control
• Buddy-boxing ready, also cross-over-buddy-boxing ready (VBar Control together with a radio of a different brand)
• Model Sharing (bind and fly)
• Ready for VBar Control telemetry sensors or ­Kontronik® TelMe
• Event Log
• Macrocells offer freely programmable mixers, 7-point curves, & sequencers
• Multiprotocol Single Line Receiver, connect to other systems via proprietary or open protocols like:
• Futaba® S.Bus
• Spektrum® satellite protocol simulation
• Universal Digital Interface (UDI)
• Analog PPM8 or PPM12 (8/12 channels)
• Connect multiple VBasic and/or VBar NEO devices via Interbus to get a multi-redundant diversity receiver setup (up to 4 diversity receivers/8 antennae), with up to 23 physical outputs (servo connectors)
• Ready for updates as they come available; with software updates you can enable VBasic for other purposes. Complex airplanes (VPlane), for helicopters (VBar), for multi-rotors (VCopter), and VBar and VCopter of course with the tried and tested Rescue feature—all required sensors are already on board
• For a full overview about the update-options as well as extensive and current online documentation, please visit Vstabi Website -> VBasic

These features make VBasic an extremely flexible receiver, with unrivalled connectivity to products of other manufacturers.

Specifications:

• Dimensions: 45.5×25.6x16mm
• Weight: 14g
• Supply Voltage: 3.5 – 8.4 V (2S Lipo)

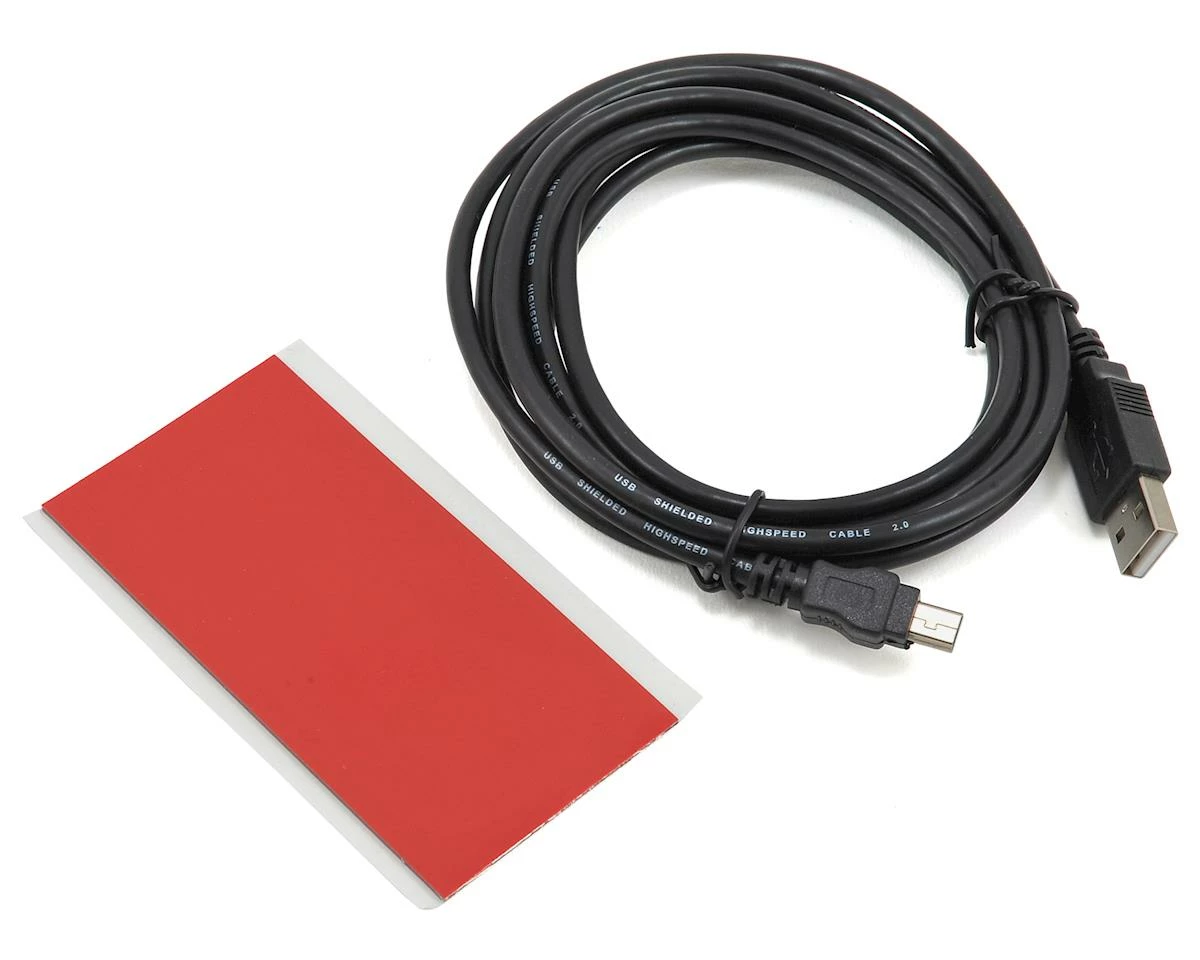

Includes:

• (1) USB cable
• (1) Boot Plug
• (1) Multiprotocol VBasic Main unit
• (1) Gyro Sensor; Inactive with VBasic, enabled with software purchase & update
• (1) Manual

Miscellaneous:

• Hardware Requirements: VBar Control
• Optional Software Upgrades: PRO Software, PRO Software with Rescue function (purchase via App Store on www.vstabi.info). With these updates, you also get the VPlane and VCopter firmware which you can use with VBar Control.

This product was added to our catalog on November 9, 2016
